Medical Pipeline System

A medical pipeline system, also known as a medical gas pipeline system, is a network of pipelines and equipment within a healthcare facility designed to deliver various medical gases and vacuum systems essential for patient care, medical procedures, and support services. These systems are critical for the operation of healthcare facilities such as hospitals, clinics, and dental offices. Here are some of the key components and gases typically included in a medical pipeline system

Medical Gases

Oxygen (O2): Used for patient respiration and in various medical procedures.
Nitrous Oxide (N2O): Often used as an anesthetic gas in dental and surgical procedures.
Medical Air: A compressed air supply used for patient ventilation and powering medical equipment.
Vacuum: Used for suction during surgical procedures, wound care, and in various medical devices.


Pipeline Infrastructure

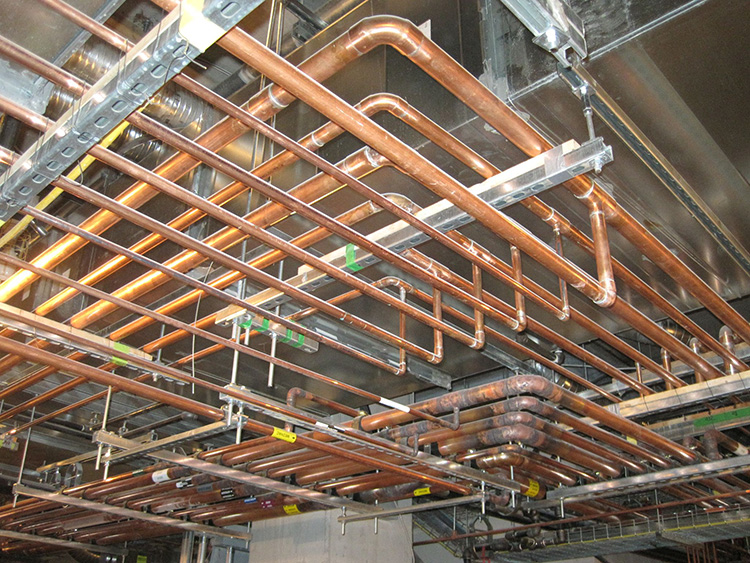

Pipelines: These are a network of pipes that transport medical gases from centralized sources to patient care areas, operating rooms, and other clinical areas.

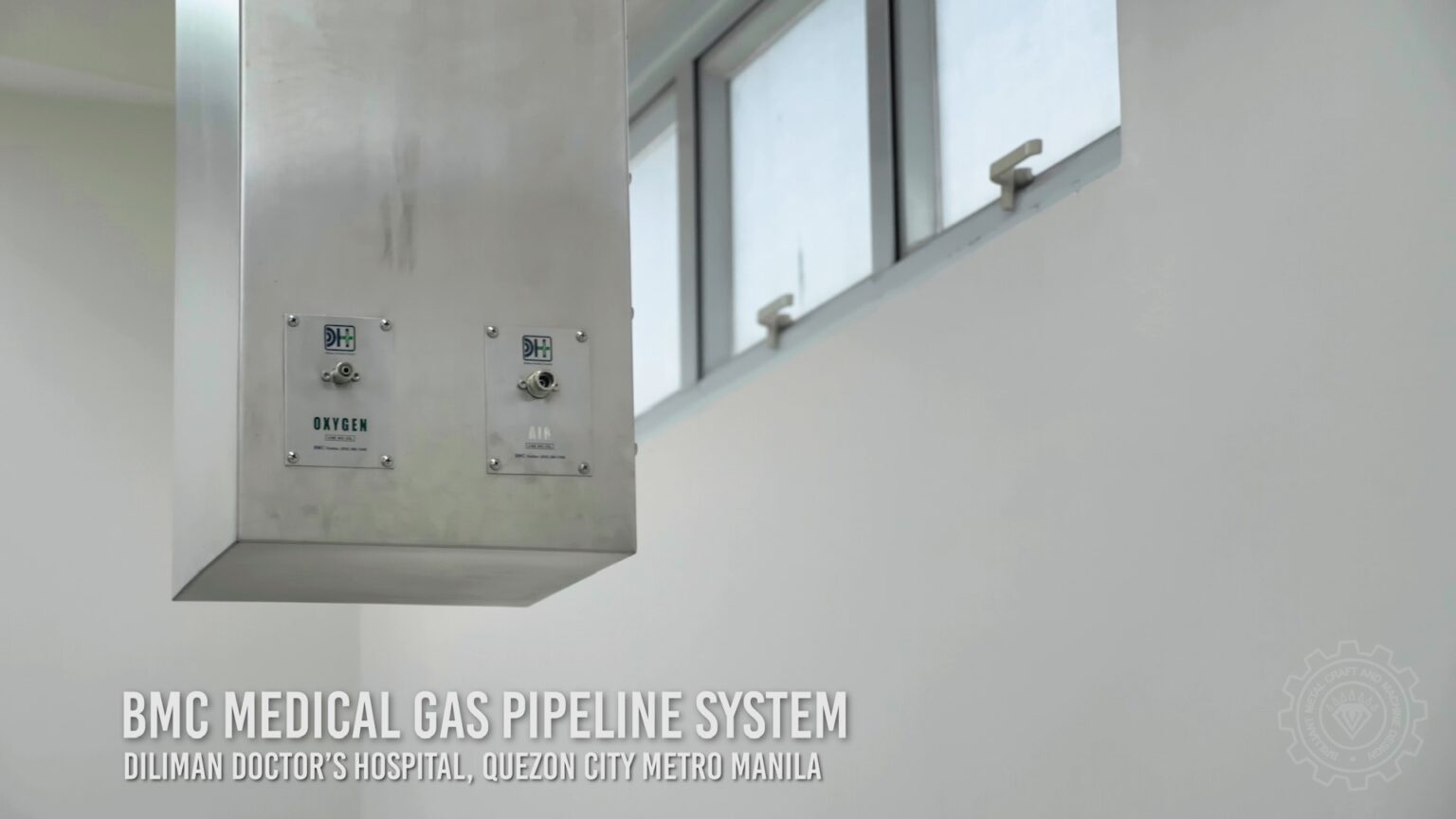

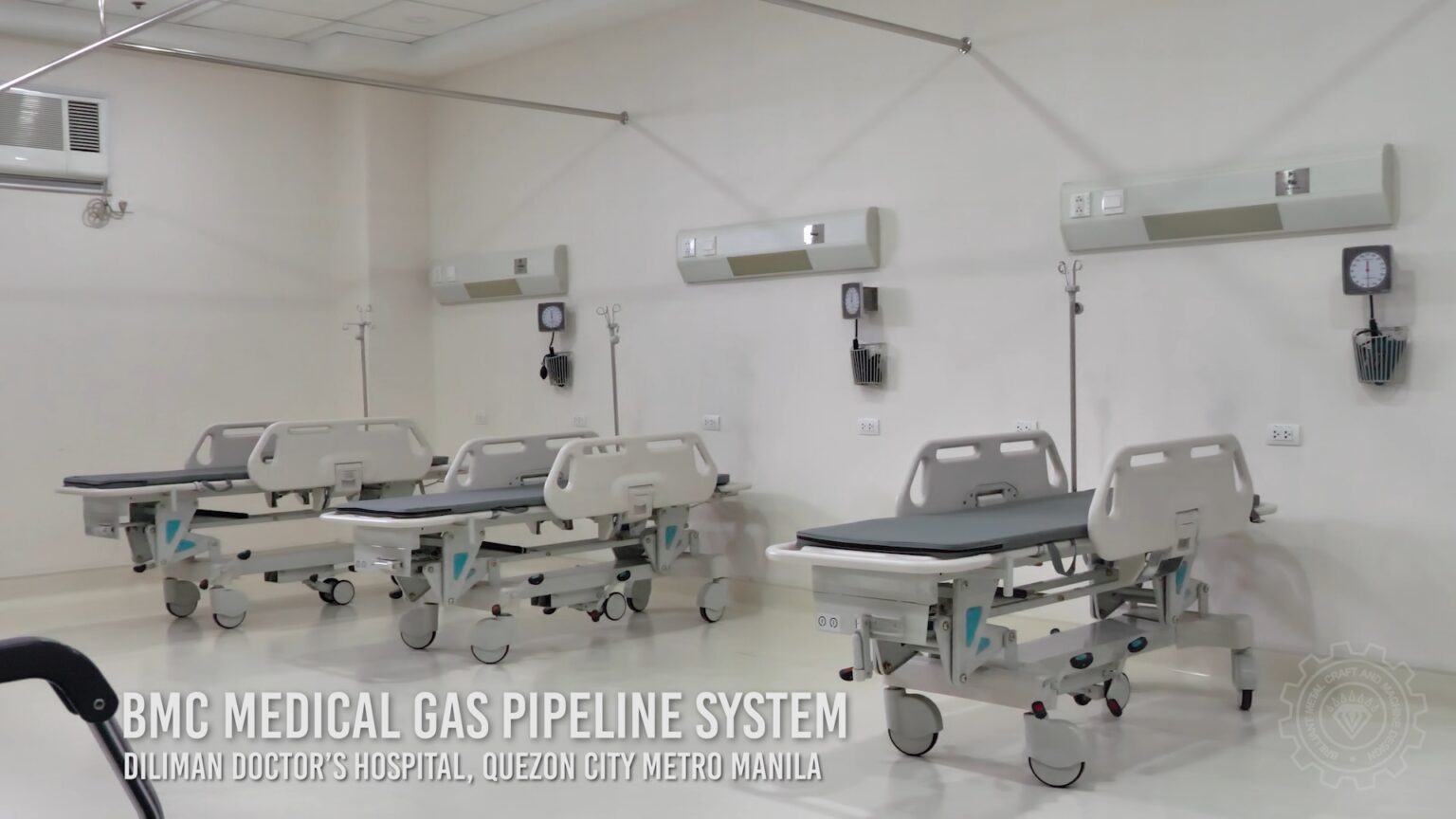

Gas Outlets: Specific outlets or terminal units are installed in patient rooms and treatment areas to connect medical equipment to the gas supply.



Gas Sources

Gas Cylinders: Large tanks or cylinders containing compressed medical gases are often used as a backup or supplementary source.

Bulk Liquid Oxygen/Nitrous Oxide Tanks: Some facilities use bulk liquid tanks for a continuous supply of oxygen and nitrous oxide.

Centralized Gas Supply System: Hospitals often have a centralized supply system with gas storage and distribution infrastructure.

Pressure Regulators and Control Panels: These devices regulate and control the flow and pressure of gases to ensure safe and consistent delivery.

Alarms and Monitoring Systems: To detect and alert healthcare staff to issues such as low gas levels or pressure fluctuations that could impact patient care.

Medical Gas Outlets and Connectors: Specific connectors and outlets for different gases to prevent accidental connections and ensure patient safety.

Zone Valves and Isolation Valves: These valves allow healthcare staff to isolate specific areas or sections of the pipeline system for maintenance or emergencies without affecting the entire system.


Maintenance and Testing

Regular maintenance and testing are essential to ensure the integrity and safety of the medical pipeline system. This includes leak testing, pressure testing, and equipment inspections.

Medical pipeline systems are subject to strict regulatory standards and guidelines to ensure patient safety. Proper installation, maintenance, and adherence to safety protocols are critical to prevent gas leaks and ensure the reliable delivery of medical gases to support patient care and clinical procedures
