Hospital Accessories Bed Head Unit

Our hospital mounted Bed Head Panels can be integrated with different types of medical gas outlets, including O2, Air, Vac, N20, N2, CO2 ones. These can be designed for installations in Special Procedures, LDR Post Partum, PACU, Transitional Step Down, Patient Rooms, Emergency Department, ICU, NICU, Radiology, etc.

General Features

  • Monoclinic-Horizontal Surface
  • Fully customized according to specific requirements
  • Integrated with optional gas outlets, electrical sockets, lights, nurse call buttons and etc.
  • Expandable to meet future needs of hospital wards
  • Powder coated access panels for different color demands
  • Available with separated of gas and electricity to ensure safety using conditions
  • Available in different color options

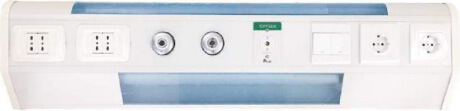

Monoclinic Series (A-BHU-XX-OH)

Configuration

Gas Outlets
Diss, Ohmeda, Chemetron, BS, DIN, FS, JS
Power Sockets
American British, German, French, Universal Standard and Earth Sockets
Light
Ambient Light & Reading Light (LED or Fluorescent Type Option)
Light Switch
Single Double Switch
Communication
Nurse Call Panel, RJ-15, RJ-45, Audio & Video Ports
Others
Vacuum Bottle Holder, Vacuum Slider

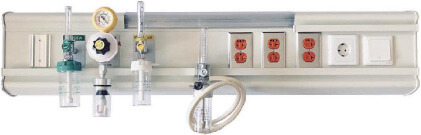

Newest Bicicular Series with Rail System (A-BHU-XX-OB2)

Configuration

Rail System
Single-side Rail or Dual-side Rail System
IV Pole
#201 or #304 Stainless-steel Material Option
Lamp
Medical Use Lamp, Up and Down Rotary
Monitor Holder
Equipped with Extension Arm, Loading Capacity 15-20kg
Gas Outlets
Diss, Ohmeda, Chemetron, BS, DIN, FS, JS
Power Sockets
American British, German, French, Universal Standard and Earth sockets
Light
Ambient Light & Reading Light (LED or Fluorescent Type Option)
Light Switch
Single or Double Switch
Communication
Nurse Call Panel, RJ-15, RJ-45, Audio & Video Ports
Others
Vacuum Bottle Holder, Vacuum Slider

Easy 2 Series with Rail System (A-BHU-XX-OB2)

Configuration

Rail System
Single-side Rail or Dual-side Rail System
Gas Outlets
Diss, Ohmeda, Chemetron, BS, DIN, FS, JS
Power Sockets
American, British, German, French, Universal Standard and Earth sockets
Light
Ambient Light & Reading Light (LED or Fluorescent Type Option)
Light Swtich
Single or Double Switch
Communication
Nurse Call Panel, RJ-15, RJ-45, Audio & Video Ports
