Hospital Secondary Equipment Oxygen Booster

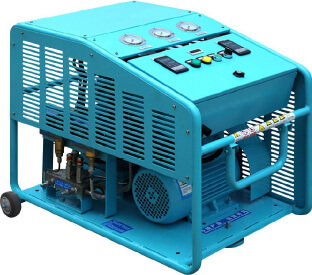

WZD-4/4-150

Item Unit Description
Medium Oxygen
Compression Stage Two
Cylinders 2
Inlet Pressure Mpa/Psi 0.4/58
Discharge Pressure Mpa/Psi 15.0/2175
Power Consumption Kw/Hp About 2.2-3.0/3.0-4.0
Motor Speed Rpm 400
Motor Protection Class IP54
Motor Insulation Class F
Cooling Method Air cooled
Inlet Size DN15
Outlet Size DN6
Main Parts Materials Cylinder & sleeve: stainless steel
Piston: aluminum/brass alloy
Piston / guide ring: filling PTFE
Filing Time (40L Cylinder w/in 24 hrs.) About 15Pcs
Dimension (L*W*H) mm About 700*750*950

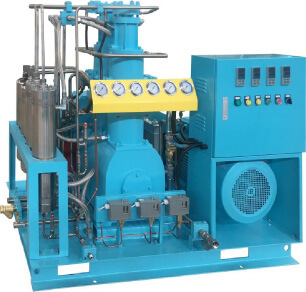

WZE-25/4-150

Item Unit Description
Medium Oxygen
Compression Stage Four
Cylinders 4
Inlet Pressure Mpa/Psi 0.4/58
Discharge Pressure Mpa/Psi 15.0/2175
Power Consumption Kw/Hp About 2.2-3.0/3.0-4.0
Motor Speed Rpm 730
Motor Protection Class IP54
Motor Insulation Class F
Cooling Method Water cooled
Inlet Size DN25
Outlet Size M16X1.5
Main Parts Materials Cylinder: stainless steel
Gas Valve: stainless steel
Pipeline & cooler: stainless steel
Filing Time (40L Cylinder w/in 24 hrs.) About 105Pcs
Dimension (L*W*H) mm About 1720*910*1400

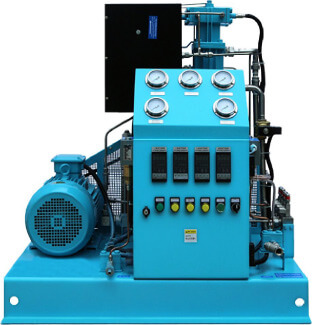

WZ-12/4-150

Item Unit Description
Medium Oxygen
Compression Stage Two
Cylinders 2
Inlet Pressure Mpa/Psi 0.4/58
Discharge Pressure Mpa/Psi 15.0/2175
Power Consumption Kw/Hp About 4.2/4.7
Motor Speed Rpm 960
Motor Protection Class IP54
Motor Insulation Class F
Cooling Method Air cooled
Inlet Size DN15
Outlet Size DN6
Main Parts Materials Cylinder: stainless steel
Gas Valve: aluminum/brass alloy
Pipeline & cooler: stainless steel
Filing Time (40L Cylinder w/in 24 hrs.) About 51Pcs
Dimension (L*W*H) mm About 1000*850*1100

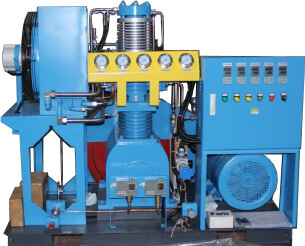

WZW-43/4-150

Item Unit Description
Medium Oxygen
Compression Stage Four
Cylinders 4
Inlet Pressure Mpa/Psi 0.4/58
Discharge Pressure Mpa/Psi 15.0/2175
Power Consumption Kw/Hp About 15-18.5/20-25
Motor Speed Rpm About 730
Motor Protection Class IP54
Motor Insulation Class F
Cooling Method Air cooled
Inlet Size 25mm
Outlet Size 15mm
Main Parts Materials Cylinder: stainless steel
Gas Valve: stainless steel
Pipeline & cooler: stainless steel
Filing Time (40L Cylinder w/in 24 hrs.) About 170Pcs
Dimension (L*W*H) mm About 1500*1000*1500
