Medical Gas Pipeline System Medical Gas Alarm

Improve your alarm systems with our medical gas alarm. It allows comprehensive monitoring of your medical gas supply system. It monitors gas pressures and vacuum levels of the medical gas pipeline. All gases or vacuum levels are displayed on an LCD Screen with should allow all alarm programming to be setup and done without the use of tools.

BC Series Medical Gas Area Alarm

This alarm system is a highly modular system utilizing the most advanced technologies in electronics and software. The modular design can implement limitless configurations to meet difference monitoring requirements.

BC Series Area Alarm is design to accept input signals of pipeline gas pressure, have built-in RS485 communication port allows each BC Series alarm to be networked for remote monitoring. The physical data will be processed and displayed on site by the area alarms.

Technical Features

  • Modular system configuration
  • 1 to 8 gas kinds available
  • Pressure units are customizable (Psi, kPa, Bar, MPa, inHg, and mmHg)
  • High/low alarm limits are customizable
  • Built-in RS-485 communication port for networking
  • Univeral sensor with fast connector for easy installation
  • Touch mute button can be artificially muted
  • Compact size with large four-digit LED numerical displays
  • Dual color LEDs for system statuses
  • All parameters can be field adjustable
  • Labels can be customized upon request

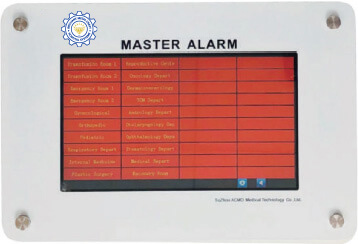

BC Series Medical Gas Master Alarm

This master alarm is used as an Area Alarm Monitoring Center. When connected, the working conditions of the area alarms will be displayed on the Area Alarms Monitoring Center. This would be a great solution for medium-sized central monitoring project.

Built-in RS485 communication port allows each BC Series alarm to be networked for remote monitoring. The physical data will be processed and displayed on site by the master alarm.

Technical Features

  • Mainframe supply voltage: DC24VS+%
  • Power adapter supply voltage: AC 110V-240VAC
  • Power consumption ofr the whole machine: < 10W
  • MOnitoring Points: 1-40 Points
  • Communication TYpe: RS485
  • Size of LCD Screen: 10:1″ (222.7mm * 125.3mm)
  • Support user-defiend area alarm name
  • Support sound and light alarm
  • All the parameters set by touch screen

BE Series LCD Medical Gas Area Alarm

This medical area gas pressure alarm is suitable for monitoring hospital floors, nurses’ station, operating room and other regional gas pressure situation, through the 10.1-inch LCD screen real-time display is monitored gas pressure, can be set the alarm point based on the parameters of the use. To achieve overrun alarm, to ensure hospital gas pressure normal.

Technical Features

  • 1 to 8 gas kinds available
  • Pressure units are customizable (Psi, kPa, Bar, MPa, inHg, and mmHg)
  • High/low alarm limits are customizable
  • Built-in RS-485 communication port for networking
  • Univeral sensor with fast connector for easy installation
  • Touch mute button can be artificially muted
  • All paramters can be field adjustable
  • LCD size: 222.7mm * 125.3mm
