Humidifier Bottles

Technical Specification

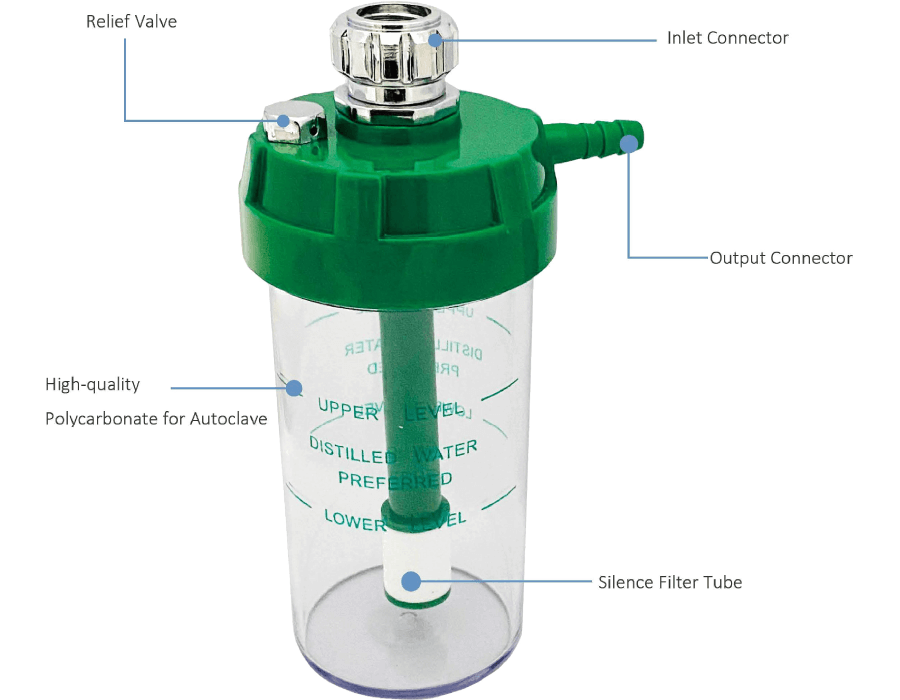

Humidifier Bottle
AKM-H1
Usage
fitting for Oxygen Flowmeter, Regulator, Oxygen Generator etc.
Function
Humidify the Oxygen
Medium
Medical Oxygen
Material
Transparent High-quality Polycarbonate and ABS
Filter
Polymer High-density Filter, wetting uniformly, Can Silencing
Work Pressure
0.45 MPa/4.5 bar / 50 psi
Relief Valve Exhaust Pressure
0.4-0.6 Mpa
Inlet Connector
9/16UNF-18 (DISS1240)
Output connector
8mm dia.
Dimensions
66 dia. * 158mm
Humidifier Volume
200ml/cc
Sterilize
Autoclave max 134C, 0.21 Mpa, European B-level standards
Water Level Scale
High and Low Water Level Scale
AKM-H1
AKM-H2
AKM-H3
AKM-H4
AKM-H5
AKM-H6
AKM-H7
AKM-H8
AKM-H9
AKM-H10
AKM-H11
AKM-H12
AKM-H13
AKM-H14
AKM-H15
AKM-H16
AKM-H17
AKM-H18
AKM-H19
AKM-H20
Model Number Input Connection Volume(ml)
AKM-H1 9/16-18-RH 200
AKM-H2 9/16-18-RH 200
AKM-H3 9/16-18-RH 200
AKM-H4 9/16-18-RH 200
AKM-H5 9/16-18-RH 200
AKM-H6 9/16-18-RH 200
AKM-H7 9/16-18-RH 200
AKM-H8 M10x1-RH 200
AKM-H9 9/16-18-RH 200
AKM-H10 9/16-18-RH 200
AKM-H11 9/16-18-RH 140
AKM-H12 9/16-18-RH 140
AKM-H13 M12*1.25 300
AKM-H14 M10x1-RH 140
AKM-H15 9/16-18-RH 150, 250, 350, 500
AKM-H16 9/16-18-RH 150, 250, 350, 500
AKM-H17 9/16-18-RH 150
AKM-H18 9/16-18-RH 150
AKM-H19 9/16-18-RH 150
AKM-H20 9/16-18-RH 150
